Travelator details

Description

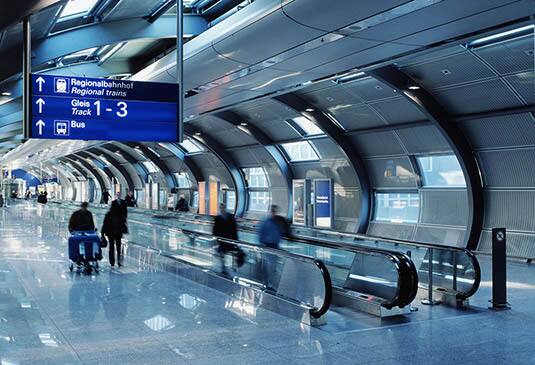

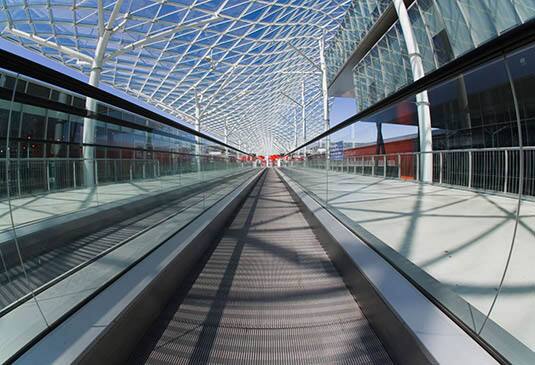

The KONE TransitMaster™ 165 travelator is a heavy-duty autowalk primarily targeted towards the infrastructure segment who need flat escalator solutions for demanding traffic conditions. This includes the need for an airport moving walkway, a flat escalator in a railway station, as well as a travelator in a stadium or transit center.

Specifications

  • Operational environment: indoor, semi-outdoor
  • Speed: 0.5, 0.65, 0.75 m/s;
  • Inclination: 0-6º
  • Pallet width: 1000, 1200, 1400 mm
  • Length: Up to 100m

Travelator safety

  • Safety is the starting point for every KONE travelator. The TransitMaster™ 165 travelator conforms to all local and international safety codes.
  • We provide standard autowalk safety features including comb plate impact device switches and emergency stop buttons for passengers.

Tools and downloads

Escalator Planner

Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.

Escalator & Autowalk Planning guide

Our easy-to-understand guide gives you all the information you need when planning an escalator or autowalk solution, including guidance on building regulations and safety codes.

KONE TransitMaster™ 165/185 horizontal autowalk

This guide details the options and planning dimensions for the KONE TransitMaster 165/185 horizontal autowalk, which is designed for transport hubs such as airports and railroad stations.

Specifications – KONE TransitMaster™ 165 travelator

Technical details and safety and design options for the KONE TransitMaster™ 165 travelator.

KONE solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

Travelator options and highlights

Travelmaster 165

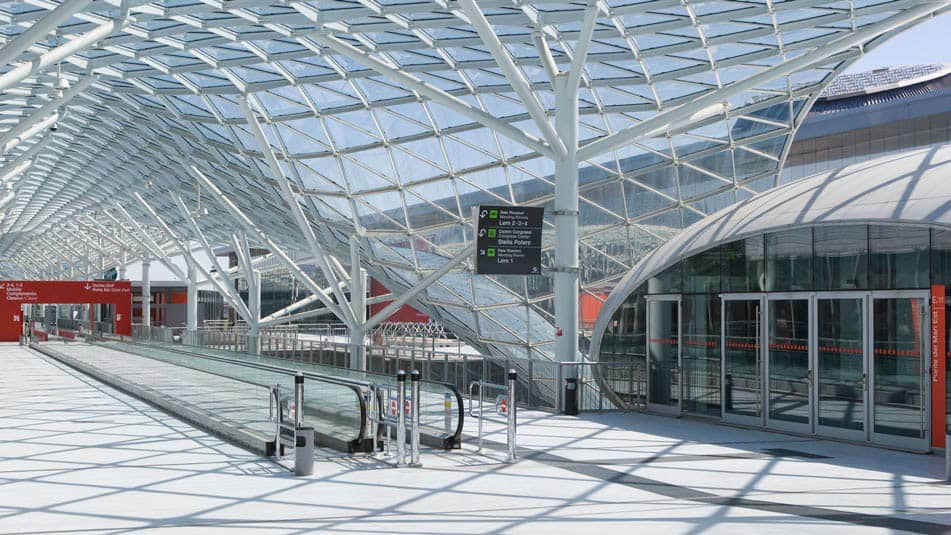

Travelator eco-efficiency

  • Eco-efficient operation can save energy by slowing down or stopping the autowalk when it is not in use or when traffic is low
  • Long lasting LED lighting on a flat escalator is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
  • Reduced autowalk speed of 0.4m/s saves energy depending on passenger traffic, e.g. an airport moving walkway
  • The lubrication-free step chain saves oil, reduces chain wear, and decreases fire risk for a moving walkway
Travelmaster 165

Travelator safety

In addition to the standard travelator safety features, we offer optional safety features including:

  • New autowalk traffic signalization solutions and colored step demarcations for extra visual guidance
  • Halogen-free, fire-resistant wiring
  • Seismic movement options
  • Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
Travelmaster 165

Travelator design

High quality travelator design for the best possible user experience:

  • Innovative and attractive travelator design lighting solutions that also improve passenger guidance and safety on moving walkways
  • A wide range of travelator design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Related topics

Escalator and autowalk solutions

Product name
Type
Segment
Maximum rise
Speed
KONE TransVario premium drive availableInclination
24/7 Connected Services available
Energy-efficiency class
TravelMaster 110
EscalatorCommercial, retail, hotel, office, multi-use, stadium, medical
13 m
0.5 m/sTravelMaster™ 110T (factsheet)30°, 35°
YesA+++
TravelMaster 115
Inclined autowalkCommercial, retail, multi-use, airport
7 m
0.5 m/s
10°, 12°
Yes
A+++
TransitMaster 120
EscalatorMetro, airport, station, transport hub, multi-use
20 m
0.5, 0.65, 0.75 m/sTransitMaster™ 120T (factsheet)27.3°, 30°, 35°Yes
A+++
TransitMaster 140
EscalatorMetro, airport, station, transport hub
35 m
0.5, 0.65, 0.75 m/sTransitMaster™ 140T (factsheet)27.3°, 30°YesA+++
TransitMaster 165
Horizontal autowalkMetro, airport, station, transport hub, multi-use
100 m length
0.5, 0.65, 0.75 m/s
0-6°
YesA+++
